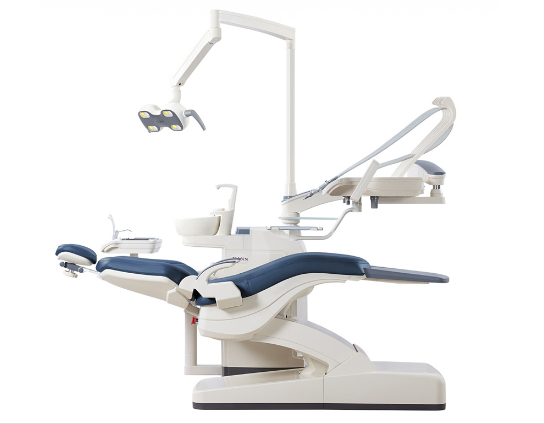

ZA-208Q8 Fashionable and simple electric dental chair

1. ZA-208Q8 Dental Comprehensive Treatment Table

1.1. The third-generation high-position compensation linkage chair frame, the lowest seat position is less than 450mm, and the highest seat position is greater than 720mm;

        The load capacity of the chair is 135kg (not including the treatment machine);

        The chair lifting speed is ≥15mm\s, and the lifting is very stable;

        The back tilt angle of the seat cushion is less than 10 degrees;

        The backrest moves from 8 degrees to 70 degrees.

1.2. The headrest can be adjusted. The length of the headrest is less than 120mm. The headrest tilt angle is 20 degrees forward and 40 degrees backward.

1.3. The noise is less than or equal to 45 decibels, and the rotating motor adopts a silent DC motor to ensure safe use.

1.4. The machine has four-directional chair operation modes: hand control and foot control, with a microcomputer control system, reset and PLC (programmable controller: according to user requirements and programmed logic to control the circuit, etc.) Function.

1.5. The machine is beautiful and generous, conforms to the principle of human function, and has a European style model. The leather pad is made of microfiber eco-friendly leather, which is soft and comfortable.

1.6, ※Power supply voltage: a.c.100V\110V\220V\230V-50HZ\60HZ

        ※Motor voltage: d.c24V

        ※Water pressure of water source: 0.2MPa～0.4MPa

        ※Air pressure: 0.5MPa～0.8MPa

2. Therapeutic machine

2.1. Full computer control, flat operation switch panel, convenient for doctors to observe and operate, the chair position adjustment buttons are interlocked, and it is not easy to cause wrong operation.

2.1.1 Chair position control: There are up, down, backward, forward, reset and PLC functions respectively.

2.1.2 LED dental light control: stepless variable speed adjustment of strong and weak light, induction switch.

2.1.3 Water heater control: click the button to operate on and off.

2.1.4 Mouthwash water supply control: Inching button to operate on and off, quantitative water supply setting function and automatic water dispenser water supply function.

2.1.5 Spittoon flushing control: Inching button to operate on, off and automatic timing off functions, the closing time can be set by yourself.

2.1.6 24V Film Viewing Light Control: Toggle to operate on and off.

2.1.7 A set of water purification system: it can supply clean water sources such as mobile phone purified water and distilled water. With adjustment switch, easy to operate.

2.2. Instrument tray

2.2.1 Three sets of four-hole standard high-speed mobile phones.

2.2.2 A set of four-hole standard low-speed mobile phones (including straight and curved mobile phones).

2.2.3 A set of three-purpose spray gun (cold water). (The spray gun head and the shell can be separated quickly and can be sterilized by high temperature).

2.2.4 A set of easy-to-clean stainless steel instrument trays, easy to disinfect.

2.2.5 A set of 24V film viewers.

2.3, assistant side

2.3.1 One strong suction and one weak suction. The saliva suction filter system is easy to disassemble and clean.

2.3.2 The saliva suction tube can be easily removed for cleaning and disinfection.

2.3.3 A set of three-purpose gun (constant temperature hot water). (The spray gun head and the shell can be separated quickly and can be sterilized by high temperature)

2.3.4 A set of stainless instrument trays

2.4, LED oral cold light

2.4.1 Oral cold light can be controlled by infrared sensor switch stepless dimming + manual switch

2.4.2 Stepless gears can be adjusted, low gear≥8000Lx, high grade≥20000Lx,

2.4.3 The color temperature is 6000-6500K.

2.5, ceramic spittoon

2.5.1 Easy to clean, easy to disinfect, and detachable.

2.5.2 Spittoon launching speed ≥4.5L\min.

2.6 Doctor's chair

It is equipped with a luxurious doctor swivel chair, which can adjust the height and waist, and can move flexibly in five wheels.

2.6.1 The lifting range of the doctor's chair is 130mm.

2.6.2 The maximum load capacity of the physician chair is 135kg.

2.6.3 With waist adjustment, it is beneficial to work for a long time

Parts

(1) 24V silent DC motor, low noise, reliable work.

(2) Mobile phone silicone tube is durable without aging and hardening.

(3) The chair surface is made of super-fiber or PU material, which is durable and not easy to age.

(4) Imported hexagonal diaphragm, durable.

(5) The solenoid valve 24V is safe and reliable, and it is not easy to malfunction.

(6) The high-pressure gas spring can be used for a long time without failure.

(7) The integrated valve is controlled by the mobile phone.

(8) The doctor's chair has cast aluminum five-claws and casters, which is reliable and safe to use.
