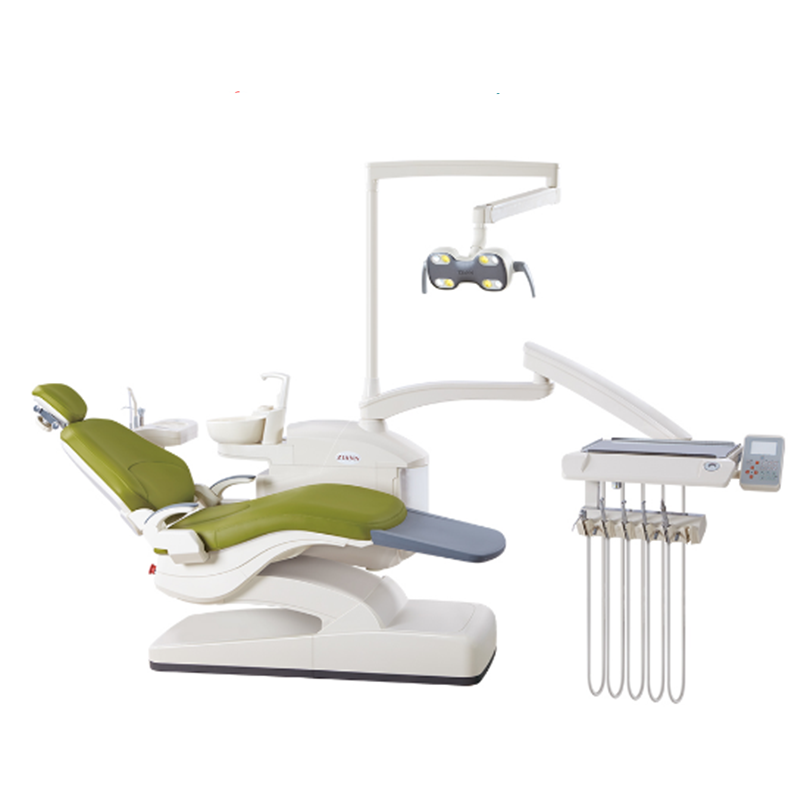

ZA-208Q6 The third generation high compensation linkage chair frame

1. ZA-208Q6 drainage comprehensive treatment bench

1.1. The third-generation high-position proof linkage chair frame, the lowest seat position is less than 450mm, and the highest seat position is greater than 720mm;

      The load capacity of the chair is 135kg (without treatment machine);

      The chair lifting speed is ≥15mm\s, and the lifting is very stable;

      The back tilt angle of the seat cushion is less than 10 degrees;

      The backrest moves from 8 degrees to 70 degrees.

1.2. The headrest can be adjusted, the length of the headrest is less than 120mm, the front tilt angle of the headrest is 20 degrees, and the back tilt angle is 40 degrees.

1. 3. The noise is less than or equal to 45 decibels, ensuring a silent printer.

1.4. The machine has manual control and control of four urban chair positions. It has the functions of micro-system, preparation and PLC foot control (using intelligent controller: according to user requirements and programmed logic to control the circuit, etc.).

1.5 The machine is beautiful and generous, conforms to the principle of human function, and has a European style model. The leather pad is made of microfiber eco-friendly leather, which is soft and comfortable.

1.6, ※Power supply voltage: a.c.100V\110V\220V\230V-50HZ\60HZ

         ※Motor voltage: d.c24V

         ※Water pressure of water source: 0.2MPa～0.4MPa

         ※Air pressure: 0.5MPa～0.8MPa

2. Therapeutic machine

2.1. Full computer control, hand-held operation switch panel, convenient for doctors to observe and operate, the chair position operation induction interlocks, and it is not easy to cause errors.

2.1.1 Chair position control: There are up, down, backward, forward, reset and PLC functions respectively.

2.1.2 LED dental light control: stepless adjustment of strong and weak light, induction switch.

2.1.3 Water heater opening control: inching component operation and closing.

2.1. Quick 4 fast water water control: jog operation to open and close, can automatically set the function and water function of the water inlet.

2.1.5 Spittoon flushing control: inching operation to open, close and automatic timing close function, the closing time can be set by yourself.

2.1.6 24V film viewing light control: toggle the operation on and off.

21.7 The water purification system comes with: it can switch clean sources such as water and electrolyzed water. Belt adjustment is convenient for operation.

2.2. Instrument tray

 Three sets of four-hole standard high-speed mobile phones.

 There are four-hole standard low-speed mobile phones (including straight and curved mobile phones).

 Three-purpose spray gun (cold water). (The spray gun head and the shell can be separated quickly and can be sterilized by high temperature).

 Easy to clean stainless steel instrument tray and easy to disinfect.

 A set of 24V film viewing lights.

2.3, assistant side

2.3.1 One strong suction, one weak suction.

2.3.2 The drug tube can be easily removed for cleaning and disinfection.

2.3.3 Comes with a three-purpose gun (constant temperature water heater). (The nozzle and shell can be quickly set off and can be sterilized by high temperature)

2.4, LED oral cold light

Oral cold light can be controlled by infrared sensor switch stepless dimming + manual switch

Stepless gears can be adjusted, low gear ≥8000Lx, high grade ≥20000Lx,

The color temperature is 6000-6500K.

2.5, ceramic mud covering

2.5. Easy to clean, easy to disinfect, and maintainable.

2.5.2 Spittoon launching speed ≥4.5L\min.

2.6 Doctor's chair

Equipped with a luxurious doctor swivel chair, which can adjust the height, waist and five-wheel movement.

2.6.1 The doctor's lifting range is 130mm.

2.6.2 The maximum load capacity of the physician chair is 135kg.

enter

(1) 24V silent glass motor, compact and working.

(2) Mobile phone silica gel, durable and hard.

(3) The chair surface is made of super-fiber or PU leather, which ages for a long time.

(4) Imported hexagonal diaphragm, durable.

(5) The solenoid valve works reliably and is not easy to malfunction.

(6) The high-pressure gas spring can be used for a long time without failure.

(7) The mobile phone controls the integrated valve.

(8) The doctor is equipped with cast aluminum casters and five claws, which is safe to work and use
