Hifu wrinkle removal machine manufacturer HIFU-6S

Hifu wrinkle removal machine manufacturer HIFU-6S

hifu, hifu machine, hifu face lifting, hifu korea, hifu therapy, hifu slimming, hifu wrinkle ,hifu beauty machine

 Working theory of the HIFU:

High Intensity Focused Ultrasound (HIFU) directly delivers heat energy to skin and subcutaneous tissue that can stimulate and renew the skin's collagen and thus consequently improving the texture and reducing sagging of the skin. It literally achieves the results of a facelift or a body lifts without any invasive surgery or injections, moreover, an added bonus of this procedure is that there is no downtime. This technique can be applied to the face as well as the whole body, and also, it works equally well for people of all skin colours, in contrast to that of lasers and the intense pulse lights.

 Features of the HIFU:

1. Quick & short treatment time : 30 MINS one face treatment

2. SMAS contraction : collagen remodeling , elastine fiber contraction

3. None downtime : skin just become red within the first several hours , then skin recover .

4. Instant result will be checked from the second month to the nine month , good result will last 2-3 years

5. Totally non-invasive

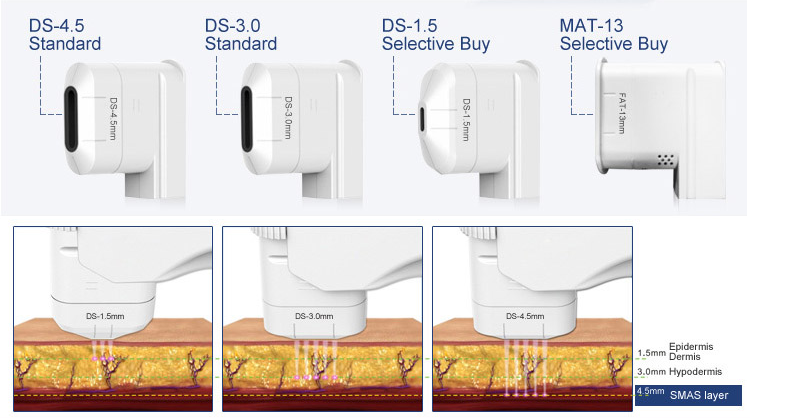

Layered energy emission transmitter of HIFU

1. DS-4.5  4MHZ frequency used to transmit high- energy focused ultrasound to the skin, subcutaneous tissue, the ultrasound to penetrate the skin to a depth of 4.5mm, direct subcutaneous SMAS layer, forming “heat coagulation” regional, targeted to thicker skin, such as cheeks, etc.

2. DS-3.0 for transmitting high frequency of 8 MHZ focused ultrasound energy into the dermis layer of the skin tissue,the ultrasound to penetrate the skin to a depth of 3.0mm,is responsible for activating the skin’s dermal layer of collagen,effectively enhance the effect of the consolidation of the outline,but also improve large pores and reduce the appearance of wrinkles.

3. DS-1.5 10MHZ frequency used to transmit high-energy focused ultrasound to the epidermis tissue,the ultrasound to penetrate the skin to a depth of 1.5mm,is responsible for activating the skin epidermis in thinner tissue.

4.Transducer DS-13mm,the 13mm head is responsible for transmitting 4 MHZ high intensity focused ultrasound subcutaneous fat layer to melt the fat cells. Then the metabolites of fat cells will be excreted by human body’s metabolis.It is targeting the body.

Note: DS-13mm transducer is ONLY do for body fat reduction, skin tightening. The treatment area of the patient must have fat thickness more than 22mm.

Input Voltage

AC 100V-230V  50Hz-60Hz

Power

<160VA

Ultrasound wavelength

4MHz  8MHz  10MHz

Output Power

0.2 to   2.0J (0.1J/STEP) for DS-1.5mm, DS-3.0mm, DS-4.5mm

Output Power

1 to 5 J   ( 0.2J/STEP ) for DS-13mm transducer for body

Focus spacing

1.0 to 10mm (0.5mm/STEP)

Focal zone length

5.0 to 25mm (0.5mm/STEP)

Transducer

DS-4.5, DS-3.0, DS-1.5,DS-13mm

GW

20KG

Packing size

42 X 67 X58 cm
